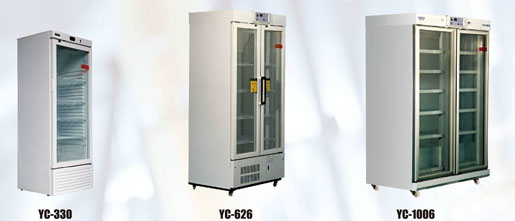

Pharmacy Cab is a purpose-built vaccine refrigerator (PBVR)

Suitable for hospitals, pharmacy, pharmaceutical factory and center for Disease Preventins, etc

Temperature Control System:

  • Controlled by mico-computer, digital display of temperature: the display accuracy attains 0.1C;
  • Forced Air Cooling system, the inner temperature can stay at the range of 2 to 8 C;.
  • Alarm control of high or low temperature; the temperature points for alarm can be set according to the requirements.

Security Control System

  • Multi malfunction alarms; high temperature alarm, low temperature alarm, sensor malfuction alarm; open the door alarm, power off alarm (optional), under voltage alarm.
  • Three alarming methods; buzzer alarming, light flashing alarming and optional remote alarming;
  • Protection function power-on delay time between stops.

Refrigeration System

  • International famous brand compressor and EBM fan electromotor.
  • Optimized system and condensation system;
  • Forced air cooling system, air channel design, stable inner termperature.

Humanized Design

  • Safety door lock, preventing the door opened by chance.
  • Wide voltage design from 187V to 242V
  • The glass outer door of hollow transparent, LED lighting design, has a full display of contents inside freezer
  • Multi-layer shelves, can adjust clearance as needed.

Model

Volume, litre

Temperature degC

External dimension mm
w x d x h

Internal dimension mm wxdxh

Shelves basket

YC-60

60

 2 -  8

472x500x740

360x400x539

2/-

YC-80

80

 2 -  8

472x500x870

360x400x680

3/-

YC-100

100

 2 -  8

472x500x1078

360x400x870

3/-

YC-180

180

 2 -  8

525x525x1583

440x440x1020

3/1

YC-280

280

 2 -  8

595x565x1661

504x460x1150

3/1

YC-330

330

 2 -  8

661x565x1736

570x475x1125

4/1

YC-370

370

 2 -  8

661x565x1881

570x475x1370

4/1

YC-626

626

 2 -  8

900x710x1989

786x585x1376

8/-

YC-1006

1006

 2 -  8

1200x710x2000

1100x585x1740

12/=
